This
Manifold Mount Swing/Pull Claps share all of the features of DE
STA CO's Live Roller clamps. Its unique body design allows simple,
no-tool hydraulic connections and eliminates fittings and tubing

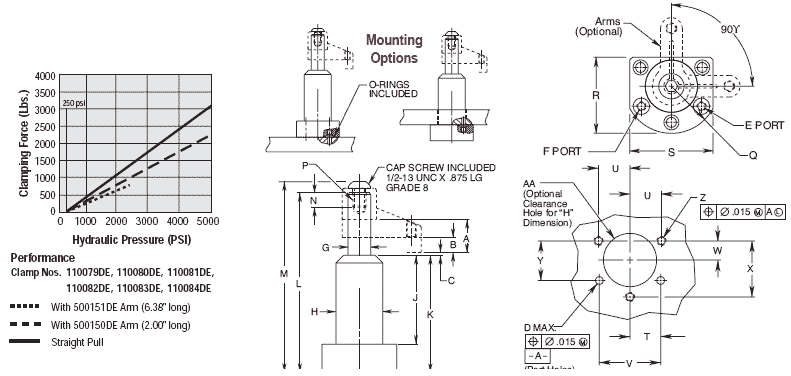

that disrupt coolant flow and collect chips. Using a simple O-ring
face seal, it is designed for flat surface mounting either on
top of or extending through a fixture plate.
The
optional arms clamp securely to the piston rod to reduce fatigue
and deflection. Arms may be easily modified or replaced with custom
arms. During clamp retraction, the cylinder rod rotates 90 degrees
causing the clamping arm to swing into position. Clamping then
must take place as the rod continues to retract in a straight
line, pulling the arm against the workpiece.
Available
90 degree left hand or right hand rotation or with guided straight
pull.
Features
-
Corrosion resistant construction, featuring heat
treated, chromeplated piston rods
- Live Roller™
swing mechanism for increased service life
- PowerTech™
treated body and hardened cam for long wear and corrosion resistance
- Straight
pull capacity 3,144 lbs. At 5,000 psi max
- Single
acting or double acting models
- Single
Acting and double acting models are dimensionally interchangeable.
|
|
