| Hydraulic
Swing/Pull Clamp Arms |
| |
 |
|
| |
|
|
| |
| Cat.
|
Specifications
|
|

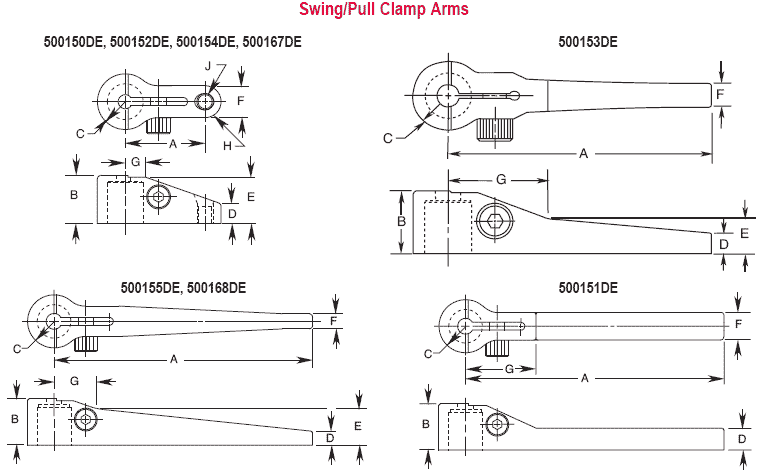

Dimensions (In Inches)
|
|
|
|
|
|
| Clamp
|
Clamp Force
|
Operating
|
Max. Flow
|
Max. Clamping
|
Weight
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
| No.
|
Rating
|
with Arm
|
Pressure
|
Rate
|
Speed
|
(Oz.)
|
|
|
Radius
|
|
|
|
|
Radius
|
Thread
|
| |
(Lbs.)
|
(Max. Lbs.)
|
(Max. PSI)
|
(Cu. In./Min.)
|
(Sec.)
|
|
|
|
|
|
|
|
|
|
Size
|
| 500167DE
|
365
|
365
|
5,000
|
15
|
.3
|
1
|
1.060
|
.600
|
.330
|
.234
|
.575
|
.380
|
.275
|
.190
|
1024 UNC
|
| 500168DE
|
|
*125
|
*2,450
|
8
|
.5
|
2
|
3.250
|
|
|
.171
|
|
.225
|
.937
|
—
|
—
|
| 500154DE
|
750
|
750
|
5,000
|
25
|
.4
|
2
|
1.250
|
.760
|
.435
|
.314
|
.730
|
.500
|
.319
|
.250
|
1⁄420 UNC
|
| 500155DE
|
|
*220
|
*2,150
|
12
|
.8
|
4
|
4.250
|
|
|
.228
|
.598
|
.250
|
.694
|
—
|
—
|
| 500150DE
|
2,400
|
2,400
|
5,000
|
100
|
.5
|
8
|
2.000
|
1.200
|
.688
|
.475
|
1.140
|
.750
|
.540
|
.375
|
3⁄816 UNC
|
| 500151DE
|
|
*720
|
2,350
|
50
|
1
|
17
|
6.375
|
|
|
.615
|
—
|
|
2.000
|
—
|
—
|
| 500152DE
|
4,500
|
4,500
|
5,000
|
250
|
.5
|
25
|
2.500
|
1.700
|
.930
|
.750
|
1.650
|
1.250
|
.743
|
.625
|
1⁄213 UNC
|
| 500153DE
|
|
*1,540
|
*2,500
|
125
|
1
|
33
|
6.964
|
|
|
.559
|
.973
|
.650
|
2.500
|
—
|
—
|
|
|
| |
| Cat.
No. |
Specifications
|
|
|
|
| Rotation Angle
Degrees |
Rotation
Direction |
Clamp Capacity
(Lbs.) |
Clamping Stroke
|
| 350912DE
|
30
|
Right Hand
|
2,400
|
.500
|
| 350915DE
|
|
Left Hand
|
| 350913DE
|
45
|
Right Hand
|
| 350916DE
|
|
Left Hand
|
| 350914DE
|
60
|
Right Hand
|
| 350917DE
|
|
Left Hand
|
*Maximum values at supplied lengths. |
|
| |
Rotation Options
DESTACO’s 2,400 lbs. Capacity, .500 inch clamping
stroke Swing/Pull clamps can be converted
to a 30, 45, or 60 degree swing by exchanging the internal cam.
Order the appropriate cam from the table.
All of DESTACO’s 2,400 lbs. capacity, .500 inch clamping stroke
Swing/Pull clamps are also available from
the factory with 30, 45, and 60 degree swing options. |
|
| |
|
|
| |
|
|
|
