These
Swing/Pull Clamps have all of the features of DE STA Co's Live
Roller design and they are manifold mountable. During clamp retraction,
the cylinder rod rotates 90 degrees causing the clamping arm to
swing into position. Clamping then takes place as the rod continues
to retract in a straight line, pulling the arm against the workpiece.
The optional arms clamp securely to the piston rod to reduce
fatigue and deflection. Arms may be easily modified or replaced with custom arms.
Special rod wiper and a unique drainage system channels contaminants away from the clamp.
During clamp retraction, the cylinder rod rotates 90°
causing the clamping arm to swing into
position. Clamping then takes place as the rod continues to retract in a straight line, pulling the arm against the workpiece.
Available 90°
left hand or right hand rotation. 30,45,
and 60 degree rotations are also available. (see page 39)

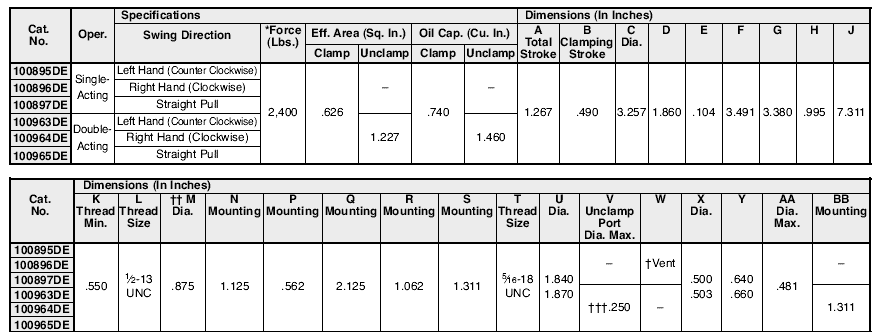

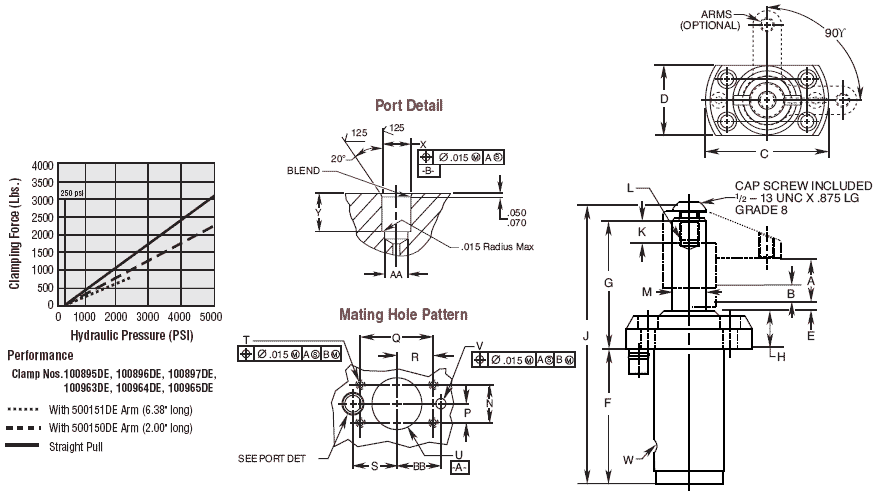

Features:
-
Corrosion resistant construction, featuring heattreated, chromeplated piston rod
s
- Live Roller™
swing mechanism for increased service life
- PowerTech™
treated body and hardened cam for long wear and corrosion resistance
- Straight
pull capacity 3,144 lbs. At 5,000 psi max
- Single
acting or double acting models
|
