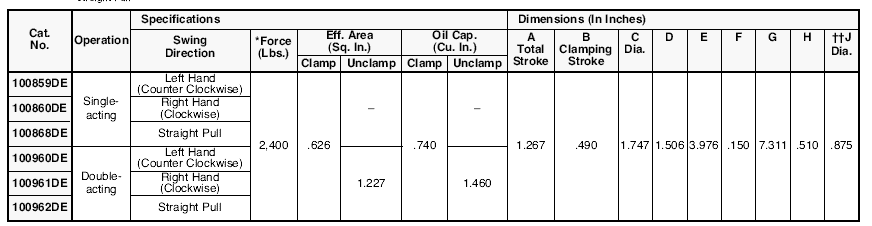

100859DE |
In
addition to all the features of DE STA CO's Live Roller Swing/Pull
Clamps, these clamps have a cartridge design that allows them
to be manifold mounted. Simply thread this clamp into a modified
SAE O-ring port and the hydraulic connection is made for you automatically.
Exposed plumb ing that can collect chips and take up valuable
fixture space is eliminated.
The port can b e cut with standard tooling and is simple to manufacture
because the threads are at the top of the hole, not buried down
in the bore. This design allows these clamps to work in fixture
plates as thin as 1 1/4 " thick.
Features:
- Cartridge
design eliminates exposed tubing and saves space
- single
acting or double acting
- heat
treated, chrome plated piston rod
- Live
Roller swing mechanism for increased service life
- Power
Tech treated body and hardened cam for long wear and corrosion
resistance
- Clamping
arms are adjustable within a full 360 degrees
- Heavy
duty corrosion resistant return spring (single acting)
- Uses
standard SAE port Tooling
- Straight
pull capacity 3,144 lbs. At 5,000 psi max
|
|
