This Cartridge Style Swing/Pull Clamp
shares all the features of DESTACO’s other Live Roller™
clamps. Its unique body design allows it to be manifold mounted where it will take
up an absolute minimum of fixture space.

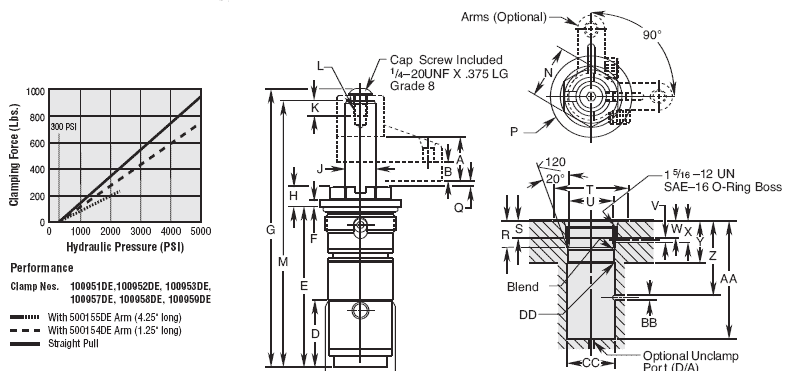

Simply thread this clamp into a modified SAE O-ring
port and the hydraulic connection is made for you automatically.
This eliminates exposed plumbing that collects chips and large mounting flanges that take up valuable space.
The mounting port can be cut with modified standard tooling and is simple to manufacture
because the threads are at the top of the hole, not buried deep down in the bore.
Available in singleacting and doubleacting versions, each with 90°
left hand or right hand rotation or with guided straight pull.
Features:
