This
Cartridge Style Swing/Pull Clamp Share all of the features of
DE STA CO's Live Roller clamps. Its unique body design allows
it to be manifold mounted where it will take up an absolute minimum
of fixture space. Simply thread this clamp into a corrosion resistant
modified SAE O-ring port and the hydraulic connection is made
for you automatically. Exposed plumbing that collect chips and
large mounting flanges that take up valuable fixture space is
eliminated.

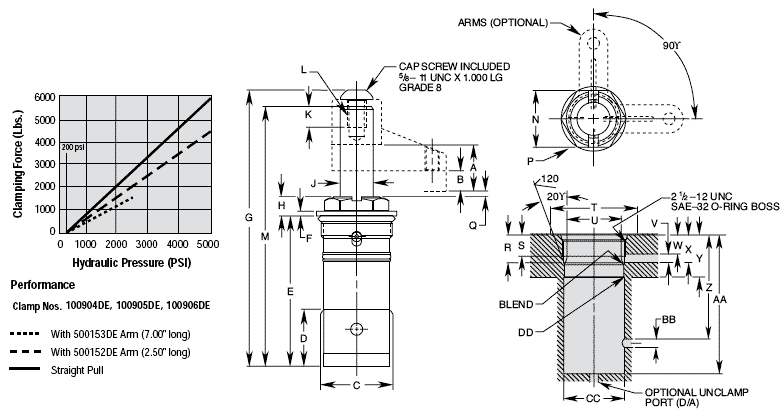

The
port can be cut with standard tooling and is simple to manufacture
because the threads are at the top of the hole, not buried down
in the bore. This design allows these clamps to be installed in
fixture plates as thin as 1.584 inches thick.
Available
with 90 degree left or right hand rotation or with guided straight
pull.
Features:
-
Corrosion resistant construction, featuring heat
treated, chromeplated piston rods
- Live Roller™
swing mechanism for increased service life
- PowerTech™
treated body and hardened cam for long wear and corrosion resistance
- Straight
pull capacity 5,900 lbs. At 5,000 psi max
- Single
acting or double acting models
|
|
