StrongHold Hydraulic Swing Pull Clamps 2400 lbs. p43

Hydraulic Swing/Pull Clamps - 2400 lb.

100889DE - 100894DE

Available in both singleacting and doubleacting models,
these clamps rotate to swing arms clear of the workpiece during machining or
loading and unloading. During clamp retraction, the cylinder rod rotates 90°
causing the clamping arm to swing into position. Clamping then takes place as the rod continues
to retract in a straight line, pulling the arm against the workpiece.

The optional arm clamps securely to the piston rod to reduce fatigue and deflection.
(See pages 39 and 40 for more.

Features:

Corrosion resistant construction, featuring heattreated, chromeplated piston rod s
Live Roller^™swing mechanism for increased service life
PowerTech^™treated body and hardened cam for long wear and corrosion resistance
Straight pull capacity 3,144 lbs. At 5,000 psi max

Cat. No.

Specifications

Dimensions (In Inches)

Oper.

Swing Direction

*Force (Lbs.)

Eff. Area (Sq. In.)

Oil Cap. (Cu. In.)

A Total Stroke

B Clamping Stroke

D Clamp Port

E Unclamp Port

Clamp

Unclamp

Clamp

Unclamp

100892 DE

Single

Left Hand (Counter Clockwise)

2,400

.626

.740

1.267

.490

.632

7/16-20UNF SAE4

Breather Plug
7/16-20UNF SAE-4 †

2.797

100893 DE

Right Hand (Clockwise)

100894 DE

Acting Straight Pull

100889 DE

Double

Left Hand (Counter Clockwise)

1.227

1.460

7/16-20UNF SAE-4

100890 DE

Right Hand (Clockwise)

100891 DE

Acting Straight Pull

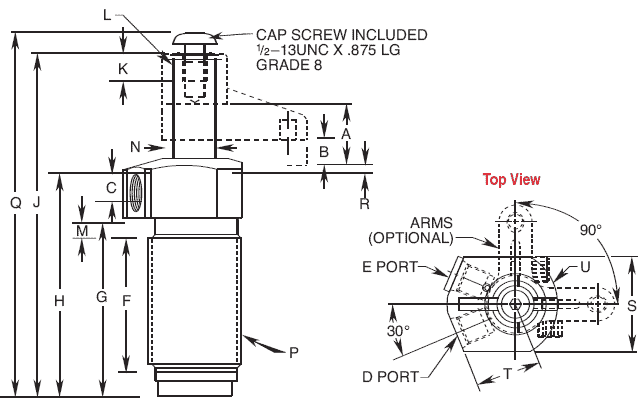

Cat. No.	Dimensions (In Inches)
Cat. No.	G	H	J	K Thread Min.	L Thread Size	M	N Dia. ††	P Thread Size	Q	R	S	T	U Radius
100892 DE	3.494	4.486	6.871	.550	1⁄213UNC	.285	.875	17⁄816UN	7.311	.104	1.875	1.150	1.125
100893 DE
100894 DE
100889 DE
100890 DE
100891 DE

NOTE: *With 2" arm at 5,000 psi max. operating pressure.
Internal cam may be removed for an unguided straight pull. See page 49 for maximum operating speeds and rotation options.
†Do not pressurize – Singleacting only.
††See page 50 for custom arm mounting
