Stronghold

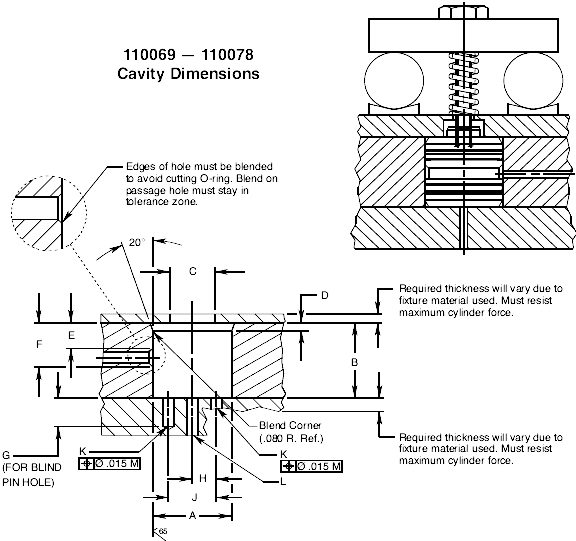

Cartridge Cylinder Installation
Cat. No.
Cavity Dimensions (In Inches)
Oil Passage Location (In Inches)
Cavity Dimensions (In Inches)
A Dia.
B Cyl. Body Cavity
C Dia.
**D
E Min.
F Max.
G Min.
H
J
K Dia.
*L Vent Dia. Min.
110069DE
.812 .815
1.120
.387 .577
.475
.728
—
—
—
—
.125
110070DE
1.187
1.130
.572
.427
.710
110071DE
1.190
.911
.437
.787
110072DE
1.312 1.315
1.245 1.255
.572 1.000
.125
.476
.734
110073DE
110074DE
1.750 1.753
1.370 1.380
.760 1.437
.145
.531
.819
110075DE
110076DE
2.125 2.128
1.495 1.505
.885 1.812
.526
.943
.510
.550
1.100
.270 .280
110077DE
110078DE
2.875 2.878
1.620 1.630
1.074 2.500
1.001
.650
.785
1.570
**Chamfer to be located at end of bore “A” from which the cylinder will be assembled.
