Available in both single acting and double acting models, these clamps’
top port design allows easy access to plumbing connections.

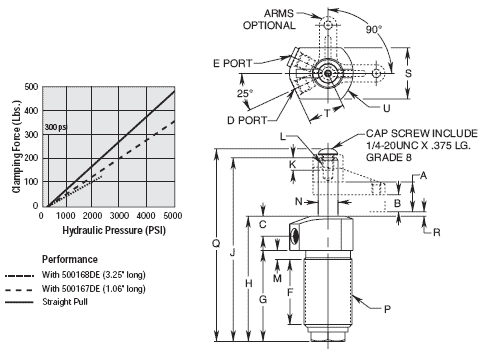

During clamp retraction, the cylinder rod rotates 90 degrees
causing the clamping arm to swing into position.
Clamping must then take place as the rod continues to retract in a straight line,
pulling the arm against the workpiece.

The Optional arms clamp securely to the piston rod to reduce fatigue and deflection.
Arms may be easily modified or replaced with custom arms.
The breather plug on single acting models may be replaced with tubing for remote venting.
Special rod wiper seals and a unique drainage system channels contaminants away from the clamp.

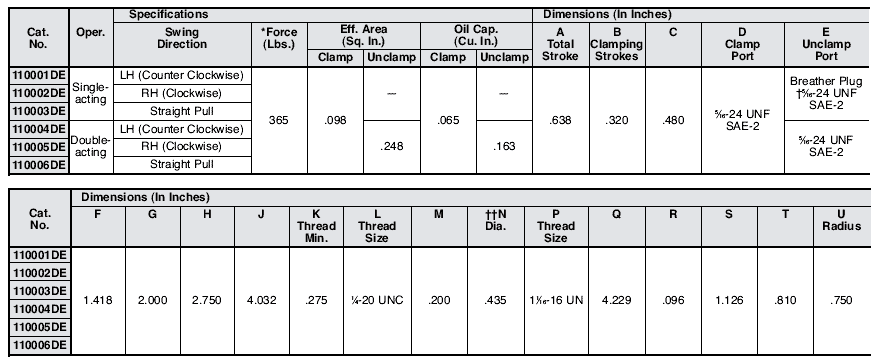

Both the single acting and double acting models share the same outside dimensions
making them completely interchangeable.

Available with 90 degree left hand or right hand rotation.
