MANUAL CLAMPS
Straight-Line Action

Model 606

Features an unusual 125° swiveling handle and linkage. Model 606 can be mounted in many positions with the handle remaining in an upright or other convenient position. This feature and its narrow base permit use where other clamps won't fit. Heat treated base. Red vinyl-dipped handle provided for operator comfort. This model clamps in only the extended position. Plunger is tapped for 5/16-18 adjustment spindle or detail.

56060
Model 606

ALSO AVAILABLE
With Metric Plunger Model 606-M Click here to view page.


MODEL 607, 607-SQ

Extremely compact for its large capacity, this low silhouette clamp locks in either extended or retracted position. From the mounting surface to centerline of plunger is only 11/16”. Model 607 has a round plunger. Model 607-SQ has a 1/2” square plunger for multiple point locating. Both models are drilled an tapped to accept any 5/16-18 detail. comes complete with red vinyl-dipped handle. Metric Plunger available with M8 internal thread.

56070
Model 607

56077
Model 607-SQ
ALSO AVAILABLE
With Metric Plunger Model 607-M
Model 607-SQ-M
Click here to view page.


Model
No.
EDP
No.
Holding
Capacity
Weight

Plunger
Travel

Plunger
Thread

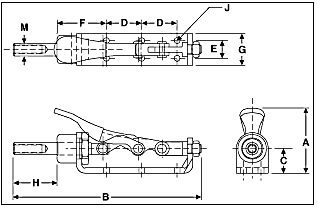

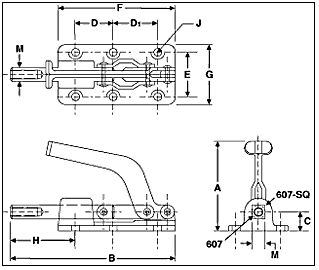

Dimensions
A B C D D1 E F G H J M
606 56060 450 lbs. .81 lbs. 1.50” 5/16-18 2.30 6.67 .88 1.25 - .63 1.75 1.13 1.56 .20 .44
607 56070 800 lbs. 1.63 lbs. 1.63” 5/16-18 3.66 6.06 .69 1.38 1.63 1.63 4.31 2.19 2.38 .28 .50
607-SQ 56077 800 lbs. 1.63 lbs. 1.63” 5/16-18 3.66 6.06 .69 1.38 1.63 1.63 4.31 2.19 2.38 .28 .50
