SERIES 201
This is the smallest series in the vertical handle hold-down clamping series. “U” shaped hold-down bar furnished with bonded neoprene-tipped M-4 spindle assembly (201208-M) and flanged washers (102111). Ergonomic handle grip included for greater operator comfort. Stainless steel models supplied with hex-head spindle (201943).
| ALSO AVAILABLE | ||
| As Air/Hydraulic | Model 812 | Click here to go to page. |
| In Stainless Steel | Model 201-USS | Click here to go to page. |

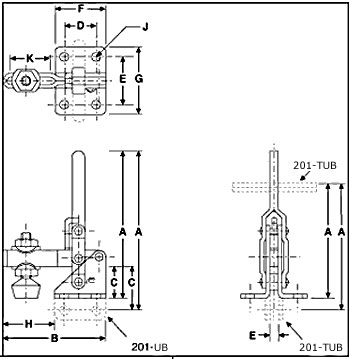

52010 Model 201 - Vertical Handle - Flanged Base |
52015 Model 201-UB - Vertical Handle - Straight Base |
52012 Model 201-TU - “T” Handle - Flanged Base |
52013 Model 201-TUB - “T” Handle Straight Base |
| Model No. |
EDP No. |
Holding Capacity |
Weight | Handle Moves |
Bar Opens |
Dimensions | |||||||||
| A | B | C | D | E | F | G | H | J | K | ||||||
| 201-U | 52010 | 100 lbs. | .15 lbs. | 60° | 110° | 2.97 | 2.02 | .63 | .63 | .94 | 1.00 | 1.31 | 1.02 | .17 | .72 |
| 201-UB | 52015 | 100 lbs. | .15 lbs. | 60° | 110° | 3.13 | 2.02 | .88 | .63 | .16 | 1.00 | - | 1.02 | .17 | .72 |
| 201-TU | 52012 | 100 lbs. | .17 lbs. | 60° | 110° | 2.25 | 2.02 | .63 | .63 | .94 | 1.00 | 1.31 | 1.02 | .17 | .72 |
| 201-TUB | 57005 | 100 lbs. | .17 lbs . | 60° | 110° | 2.41 | 2.02 | .88 | .63 | .16 | 1.00 | - | 1.02 | .17 | .72 |
