UC4000 Series Industrial Cupmount
Dimensions & Performance Characteristics

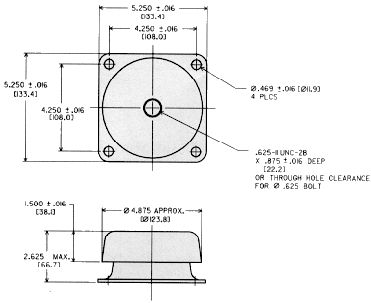

Series UC4000 Dimensional Drawing

Series UC4000 Load vs. Deflection

Series UC4000 Load vs. Natural Frequency

UC4000 INDUSTRIAL CUPMOUNT SERIES LOAD RATINGS
Part # Maximum Load Range -lbs. (Vibration Applications) Load Range - lbs. (Shock Applications)
4100 250 65-100
4135 400 100-155
4200 650 155-200
4300 900 200-285
