The
DE-STA-CO Remote Mounted Valve Control is designed for
applications where the
valve can be mounted remotely from the pump and where electrical
operation is required.
Detented action needs only a momentary signal to shift valve positions.
Electrical power
interruption won’t cause the valve to shift and release clamping
pressure or pressurize
the system unexpectedly.
Features:
- 3-way/4-way,
2-position, detented
- Electrically
operated; continuous duty rated
- Remote
mounted
- Single-
or double-acting systems
- 5,000
psi max.; 1,000 psi max. return line pressure
- 5
gpm max.
- Includes
mounting hardware:
1x4-20 UNC X 1.5" cap screws (4)
- Tank
port check valve included to prevent return line back pressure
from
actuating released single-acting components, or causing pressure
fluctuations in double-acting systems.
|
 |
 |
| Cat.
No. |
Specifications
|

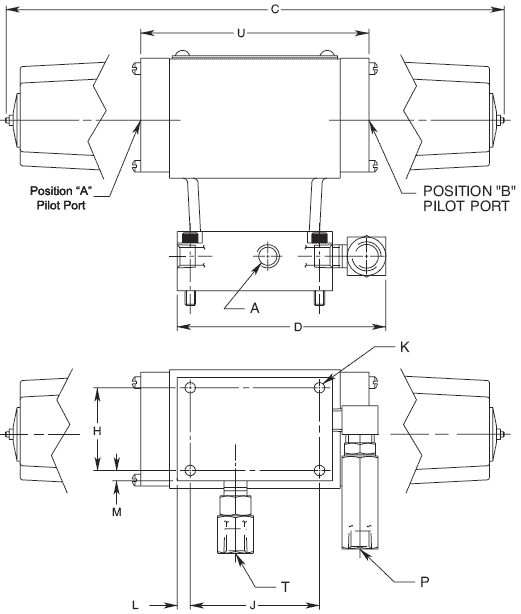

Dimensions (In Inches)
|
|
|
| Actuation
|
“A”
Port |
“B”
Port |
Position A
Pilot Port |
Position B
Pilot Port |
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
Dia. |
L
|
M
|
"P"
Port |
"T"
Port |
U
|
| 9612DE
|
115 VAC, 50/60 Hz
5.3 Amps inrush, .6 Amps holding
|
1⁄4
NPTF |
1⁄4
NPTF |
—
|
—
|
12.062
|
5.000
|
3.375
|
5.812
|
2.500
|
2.000
|
3.125
|
.281
|
.312
|
.250
|
1⁄4
NPTF |
1⁄4
NPTF |
— |
| 9573DE
|
24 VAC, 50/60 Hz
25.4 Amps inrush, 2.8 Amps holding
|
| 9574DE
|
230 VAC, 50/60 Hz
2.8 Amps inrush, .31 Amps holding
|
| 9611DE
|
50 psi min./150 psi max.
air pressure |
|
|
1⁄8
NPTF |
1⁄8
NPTF |
—
|
|
|
|
|
|
|
|
|
|
|
|
6.125
|
|
|
