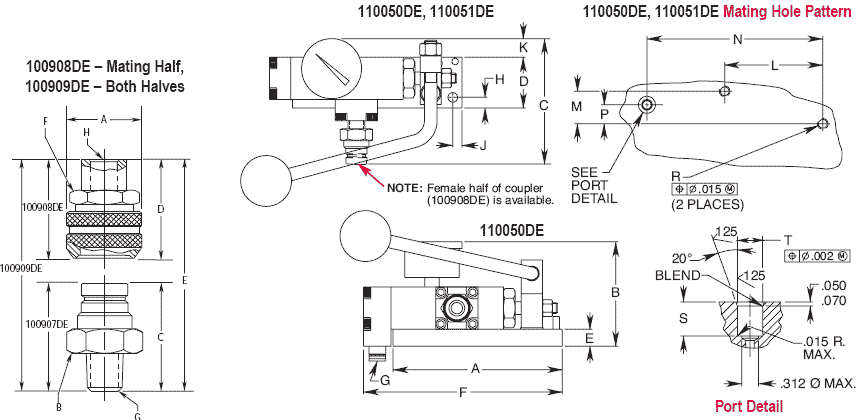

110051DE |
DE-STA-COs Manual Pallet Valve allows the hydraulic pressure
source to be disconnected from
the pallet after the fixture has been clamped, allowing flexible
machining center applications to
realize the advantages of hydraulic workholding.
This valve is smaller and takes up less fixture space.Ten micron
filters in both the inlet and outlet
ports protect the valve from contaminants. Its self-closing feature
saves the operator time and
effort.Versions are available for conventional plumbing or select
the manifold mount model.
For an easy no-drip connection, our male half coupler (100907DE)
is included. DE-STA-CO
pumps designed for use with this valve come with the mating coupler
half. A self-locking
feature helps prevent accidental release of the valve when the
coupler is not connected.
Intended for single-acting systems only. See page 80 (App. L)
and page 72 for double-acting
system applications.
Features:
-
Single-acting
-
Minimal
space requirements
-
5,000
psi maximum
-
Inlet
and outlet filtration
-
Liquid
filled pressure gauge
-
Self-closing
operation
-
SAE
and manifold mount versions
-
Coupler
protective cap
|
|
