Directional Control Valves

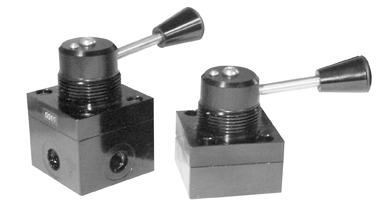

The DESTACO DCV Series Valves are constructed
of heat treated alloy steel and aluminum components. They are compact, lightweight (12 oz.) and shift easily even under maximum pressure.
The valves have extremely low leakage,
less than one (1) drop per two (2) minutes at rated pressure.

The 7 configuration manipulator provides a special fourway flow pattern, which is ideal for doubleacting pallet valve applications. In the neutral position, P is blocked and A and B are connected to tank.

Features:

�Available in 3000 PSI and 6000 PSI pressure rating
�CV factor for 1/8" NPT and 4 SAE is .26, and

.29 for 1/4 NPT and 6 SAE. �Temperature range of 65°F to +160°F �Manifold mounting conforms to 200 DO1 mounting pattern

(for panel mounting, the hole should be 1¹³⁄32" dia. with a maximum thickness of ⁵⁄16" �High strength mounting bolts are included with the manifold mount version valve.

Control Valve Order Information
DCV	2	0	4	3	N	0
Directional Control Valve Family	Pressure Rating	Port Location	Flow Configuration	Port Size	Seals	Panel Mounting
Directional Control Valve Family	1 – 3,000 PSI 2 – 6,000 PSI	0 – Manifold 1 – Side 2 – Bottom	2 – 2 Way 3 – 3 Way 4 – 4 Way Closed 5 – 4 Way Tandem 6 – 4 Way Tandem 7 – Manipulator	1 – 1/8" NPT 2 – 1/4" NPT 3 – 4 SAE 4 – 6 SAE 5 – 6 Manifold	N – Nitrile V– Viton E – EPR	O = No P = Yes
