DE STA CO's Single-Stage Pumps are continuous pressure reciprocating, stall-type pumps: Air pressure is simply converted to hydraulic pressure. Operated by any compressed air source, these pumps save energy by stalling when pressure is developed, and require no energy use to maintain system pressure. Consult factory for pump-mounted valves.

Features:

• 105 cu. in., highdensity polyethylene reservoir
• Filtered fill cap with dipstick
• Liquid filled gauge
• SAE #4
• 1/4" NPTF air inlet port ?98 cu. in usable oil
• Shipped filled with oil

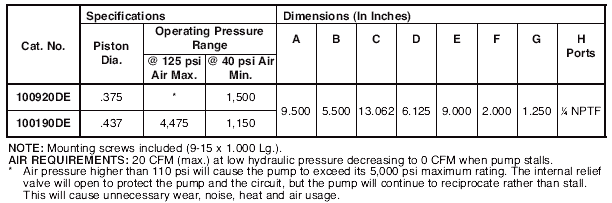

• Operating Pressure Range (nominal):
  100920DE – 5,000 psi @ 110 psi air, max. 1,500 psi @ 40 psi air, min. .375 dia. piston size
  100190DE – 4,475 psi @ 125 psi air, max. 1,150 psi @ 40 psi air, min. .437 dia. piston size
