Air/Hydraulic Power Boosters

The new DE STA CO StrongHold Rotary Unions offer exceptional reliability and capacity. The three available sizes cover most standard applications for index table, rotary indexer, rotating pallet changer and other similar applications. The Rotary Unions standard seals are suitable for hydraulic, pneumatic and vacuum applications. Special designs, such as different numbers of ports or alternative port threads, hollow shaft or electrical slip ring, are available upon request.

Features:

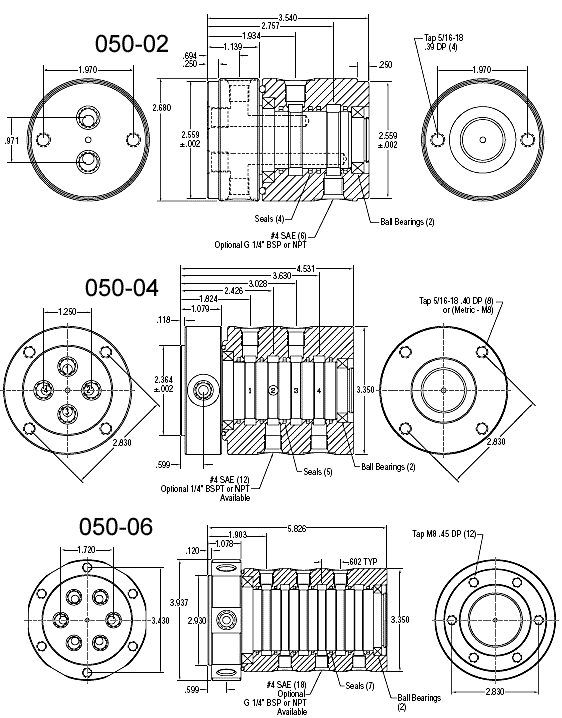

  • 2, 4 and 6 passage models - 505-02, 050-04, 505-06
  • Hydraulic, pneumatic or vacuum service
  • Standard SAE porting, consult factory for NPT or BSPP
  • Direct retro-fit
  • Leak-Free design
  • Deep groove sealed ball bearings
  • Bearings sealed from environment
  • O-ring energized impregnated Teflon seals
  • Carbon steel construction
  • Plated with Black Oxide
  • Shafts hardened and ground on centers
  • Connections can be made axially or radially
