STA CO's Spring Advance Work Supports have a spring loaded plunger
which contacts the workpiece as it is loaded into the fixture.
The spring keeps the plunger in contact with the workpiece, allowing
for variations between workpieces. To support any externally supplied
loads the sleeve surrounding the plunger grips the plunger and
holds it in place.

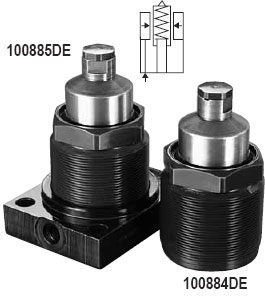

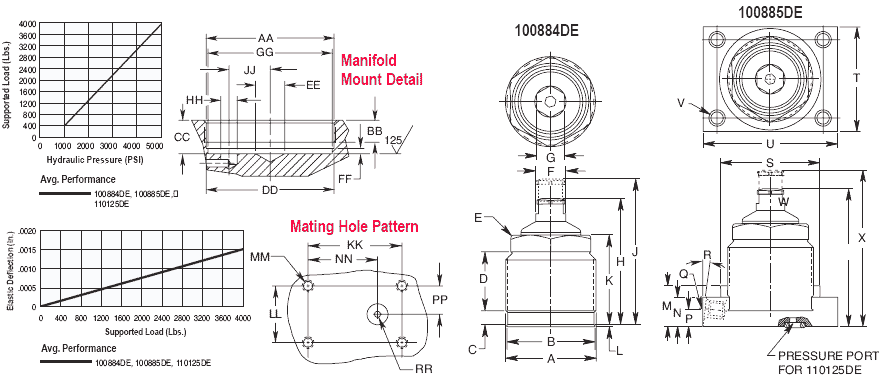

The 100884DE's threaded body may be compactly manifold mounted
in your fixture or choose the 100885DE which includes the 100884DE
work support and a mounting base for installation on a flat surface
for conventionally plumbed circuits. Both feature fully corrosion
resistant construction.
Extremely close manufacturing tolerances hold the plunger perpendicular
to the workpiece and eliminates inaccuracies due to plunger movement
during lock-up. After lock-up, the plunger is absolutely rigid
and limits elastic deflection to .00004" per 100 lbs. of
load. For base only, order number 5000028DE.
Features:
- 4000
lbs. capacity @ 5,000 psi max.
- Manifold
or conventional base mounting
- Full
corrosion resistant construction
- Small
Filtered Breather/rest button to accommodate intricate workpieces
- 1,000
psi minimum recommended pressure
|
|
