DESTACO’s
Fluid Advance Work Supports have a springloaded plunger which hydraulically
extends
to contact the workpiece. To support any externally applied loads,
the sleeve surrounding the plunger grips the plunger and holds it
in place.
Fluid Advance Work Supports allow the plunger to be retracted out
of the way during workpiece load/unload operations. The work support
provides its own internal sequencing of a piston which gently
raises the plunger until it contacts the workpiece. A spring between
the piston and the plunger limits the workpiece contact force.

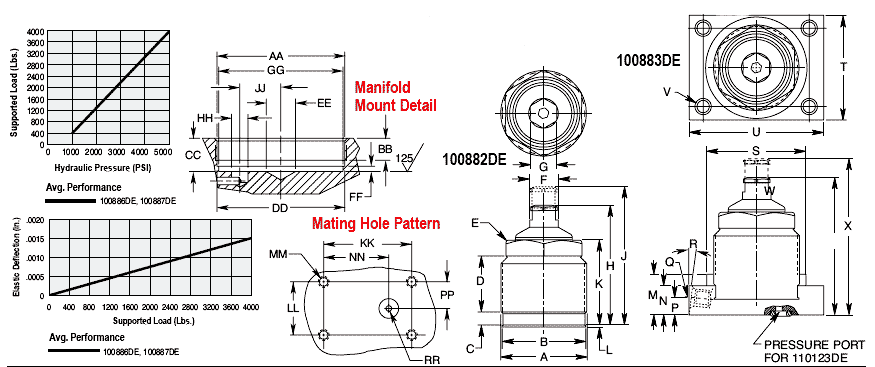

The
100882DE’s threaded body may be compactly manifold mounted
in your fixture or choose the 100883DE which includes the100882DE
work support and a mounting base for installation on a flat surface
for conventionally plumbed circuits. Both feature fully corrosion
resistant construction.
Extremely
close manufacturing tolerances hold the plunger perpendicular
to the workpiece and eliminates inaccuracies due to plunger movement
during lockup. After lockup, the plunger is absolutely rigid and
limits elastic deflection to .00004" per 100 lbs. of load.
For base only, order Number 500028DE.
Features:
- 4000
lbs. capacity @5,000 psi max.
- Manifold
or conventional base mounting
- Fully
corrosion resistant construction
- Filtered
Breather/rest button
- 1,000
psi minimum recommended pressure
|
|
