These
hydraulically operated Collet Chucks are perfect for machining
operations on round, square or hex stock. They are instant acting
and provide positive holding (up to 5,000 lbs.) for even the most
rugged machining operations. In operation, the pressurized drawbar
exerts a downward force causing the collet jaws to squeeze together
on the workpiece. An adjustable depth stop can be set to facilitate
fast loading of shorter pieces.
For
longer stock, the depth stop can be removed and the stock fed
directly through (see triple cavity
model). A locking screw is also provided to prevent collet
rotation. Standard 5C collets (not furnishes) are used for pieces

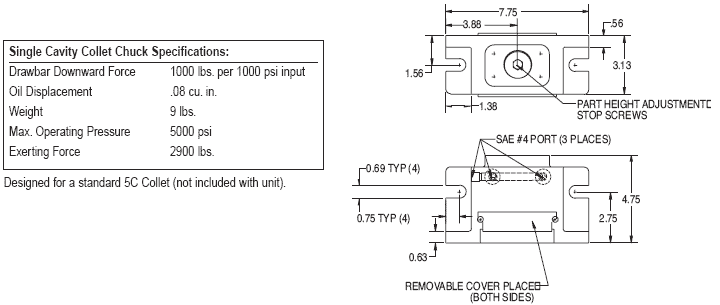

up to 1-1/6 " dia. Both the single-cavity and the triple
cavity models can be side mounted.
Features:
- Positive
holding of round, square or hex-shaped pieces
- Fast
acting
- Accurate
repeatability
- Collet
locking screw prevents collet rotation
- Mounts
in any position
|
|
