STA CO's Edge Clamps perform three functions: Locating the
workpiece, clamping horizontally against secondary locators, and
clamping vertically against the primary locating surface. This
combined horizontal and vertical clamping force can locate and
secure many parts with no other clamps being needed.
These clamps are extremely compact relative to their clamping
force and are available in either conventionally or manifold mounted
versions. At only 1" tall, their low profiles design allows
them to remain below most workpieces for unrestricted machining
access to a part's top surface.

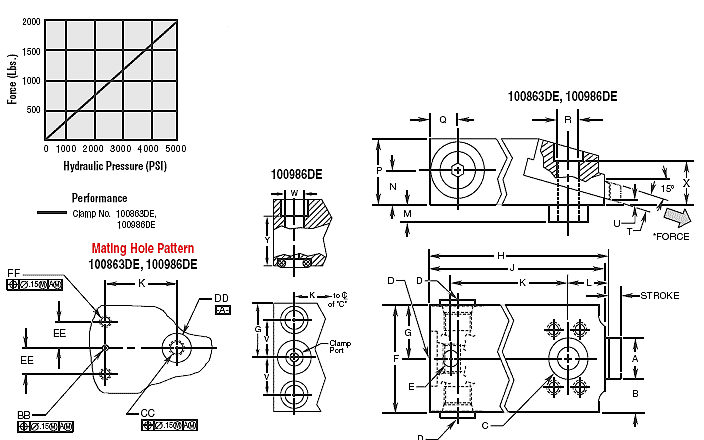

The 100986DE clamp is compactly designed for manifold mounting.
The 100863DE clamp has three pressure ports for convenient installation
and easy chaining of multiple clamps. A generous .188" stroke
compensates for workpiece variations. Includes removable mounting/locating
bushings.
- Features:
- 15°
clamping angle
- Hardened, serrated, plated gripper
- Singleacting
�Hardened, tool steel piston
- Three pressure ports (100863DE)
- Compact design
- Dual, zinc plated return springs
- Conventional and manifold
|
