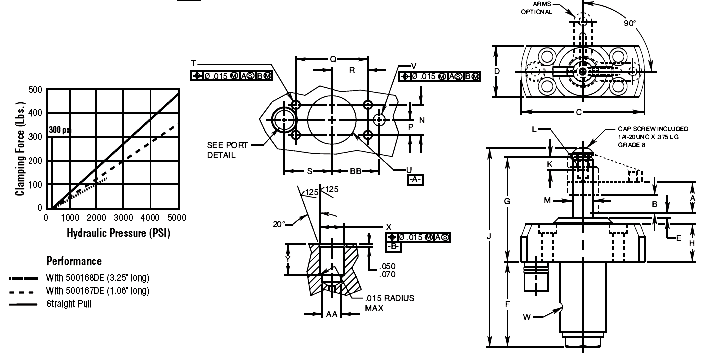

These
Manifold Mount Swing/Pull Clamps share all of the features of DESTACO’s
Live Roller™ clamps and are available in both singleacting
and doubleacting versions. Their unique body design allow simple,
no tool hydraulic connections and eliminates fittings and tubing
that disrupt coolant flow and collect chips.
During
clamp retraction, the cylinder rod rotates 90° causing the
clamping arm to swing into position. Clamping then takes place
as the rod continues to retract in a straight line, pulling the
arm against the workpiece. The optional arms clamp securely to
the piston rod to reduce fatigue and deflection. Arms may be easily
modified or replaced with custom arms. Special rod wiper and a
unique drainage system channels contaminants away from the clamp.
Available
90° left hand or right hand rotation, or with guided straight
pull.
Features:
- Corrosion
resistant construction, including heattreated, chromeplated
piston rod
- Unique
Live Roller™ swing mechanism for increased service life
- PowerTech™
treated body and hardened cam for long wear and corrosion resistance
- Manifold
mountable
- Singleacting
and doubleacting models are dimensionally interchangeable
- Straight
pull capacity 950 lbs. at 5,000 psi max.
|
|
