The

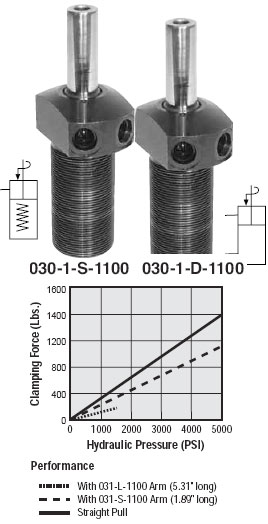

DE-STA-CO StrongHold SELECT Threaded Body Swing/Pull Clamps are
available in both single-acting and double-acting versions.They
incorporate the latest hydraulic
swing clamp technology.The top port design allows easy access
for plumbing connections.They are available with 90° left
or right hand rotation, or with guided straight pull.The breather
port on single-acting models may be replaced with tubing for remote
venting.The optional arms clamp securely to the piston rod to
reduce fatigue and deflection. Arms may be easily modified or
custom arms may be substituted.
SELECT
Features Include:
- Advanced
seals and wipers utilize a special, highly wear-resistant construction
for
long cycle life and 5000 psi operation.
- Triple
track piston rod design for field adjustable swing direction.
- Hardened
and hard chrome plated piston rod for increased strength and
wear resistance.
- Advanced
metal treated body for superior wear and corrosion resistance.
- MRO
interchange design
- Straight
pull capacity 1400 lbs. at 5000 psi max
For
1100 lb. Swing Pull Clamp Arms see
Page 29
|
