DE

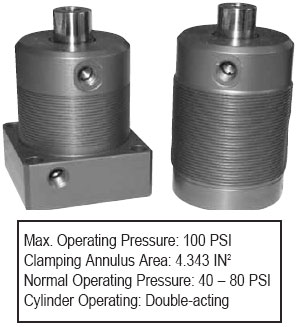

STA CO's line of Pneumatic Swing/Pull Clamps is designed for applicatoins
not requiring jydraulic power. The fast acting DE STA CO clamp
can generate up to 90 pounds of clamping force from shop air.
DE STA CO pneumatic clamps are ideal for a wide variety of manufacturing
and sssembly operations.
Features:
- Swing
motion available in 0, 45, 60, and 90 degrees
- Four
(4) styles of arms
- Double-locked
arm design is bolted to piston shaft and around shaft diameter
for extra rigidity
- Double-acting
design
- Dual-seal
design with a wiper seal to keep contaminants out
- Long
clamping stroke accommodates a wide thickness of materials
- Clamping
force is adjustable using regulated air
- Smooth
swing motion for better operating performance
|
|
