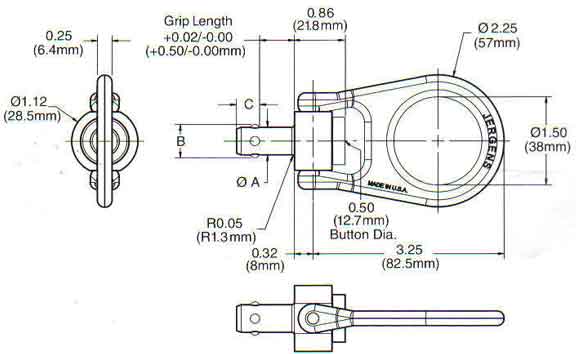

Kwik-Lok™ Lifting Pins
Kwik Lok
Features:
  • All stainless steel construction and components
  • 17-4 PH stainless steel forged, heat treated lifting ring with large opening
  • Lifting ring with Load Spreader Bar
  • 5 to 1 strength factor
Kwik Lok
Benefits:
  • Resists corrosion in harsh environments
  • Accommodates wide range of lifting hook/hardware
  • Helps prevent accidental actuation of ball release button
  • Lift with confidence



Important: Please review all operating instructions that are included in the packaging or online before use.
Note: If the required hole size cannot be achieved; Jergens recommends the use of our threaded receptacle; please contact customer service at 800-537-4367
*Lifting load ratings are based on tests with hardened tool steel plates or shoulder bushings. Load ratings may be reduced if oversized holes or parent material under 80,000 psi tensile are used.
